Amplifier

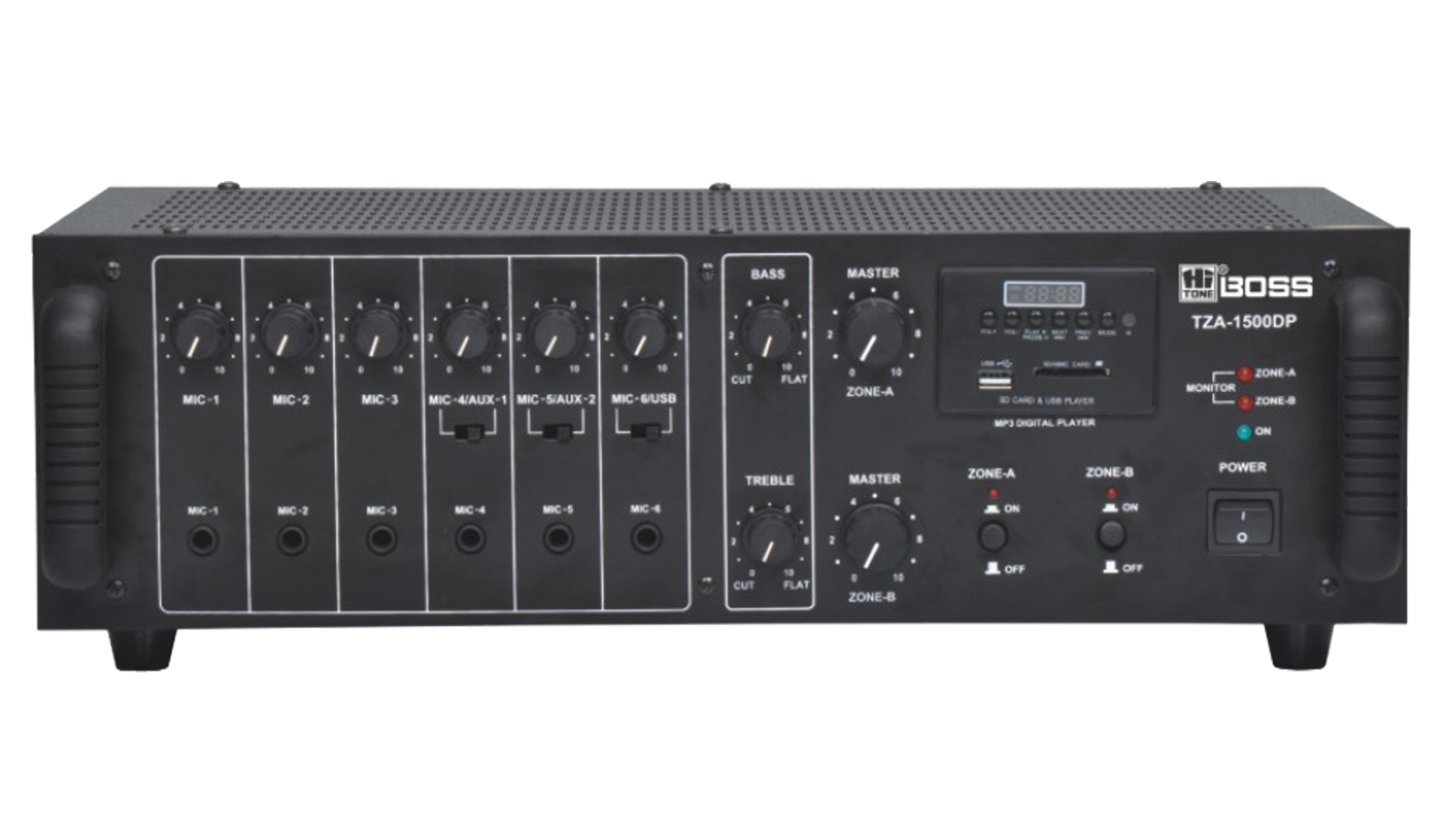

Two Zone PA Power Mixer AMPLIFIERS

BTZA-1500

160 WATTS PA Mixer Amplifier

AC & 12V DC Operation

  • 6 Mic & 2 Aux Inputs.
  • TZA-1500 permits connecting 100V (LMT) type speakers to one Zone and low impedance type speakers to other Zone without causing overloading and over heating.
  • Preamplifier output for connecting to a Booster Amplifier and for recording the programme.
  • Bass & Treble Controls.
  • Instant transfer to DC power (Car Battery) if AC power fails.
  • Zone On/Off facility. Output levels of each Zone can be set independently to desired levels and the zones can be switched On/Off without disturbing the volume settings.

  • Power Output:

    100W + 100W Max., 80W + 80W RMS at 10% THD, 70W + 70W RMS at 5% THD, 60W + 60W RMS at 2% THD

  • Output Regulation:

    ≤ 2 dB, no load to full load at 1kHz

  • Input Channels:

    6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470 kΩ

  • Frequency Response:

    65-15,000Hz ±3dB

  • Signal to Noise Ratio:

    60dB

  • Tone Controls:

    Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz

  • Outputs:

    Preamp 200mV/600Ω

  • Speaker Outputs:

    4Ω, 8Ω, 70V & 100V for each zone

  • Power Supply:

    AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)

  • Power Consumption:

    AC: 300VA DC: 6A

  • Dimensions:

    W460 × H155 × D310 mm

  • Weight:

    14.2kg
