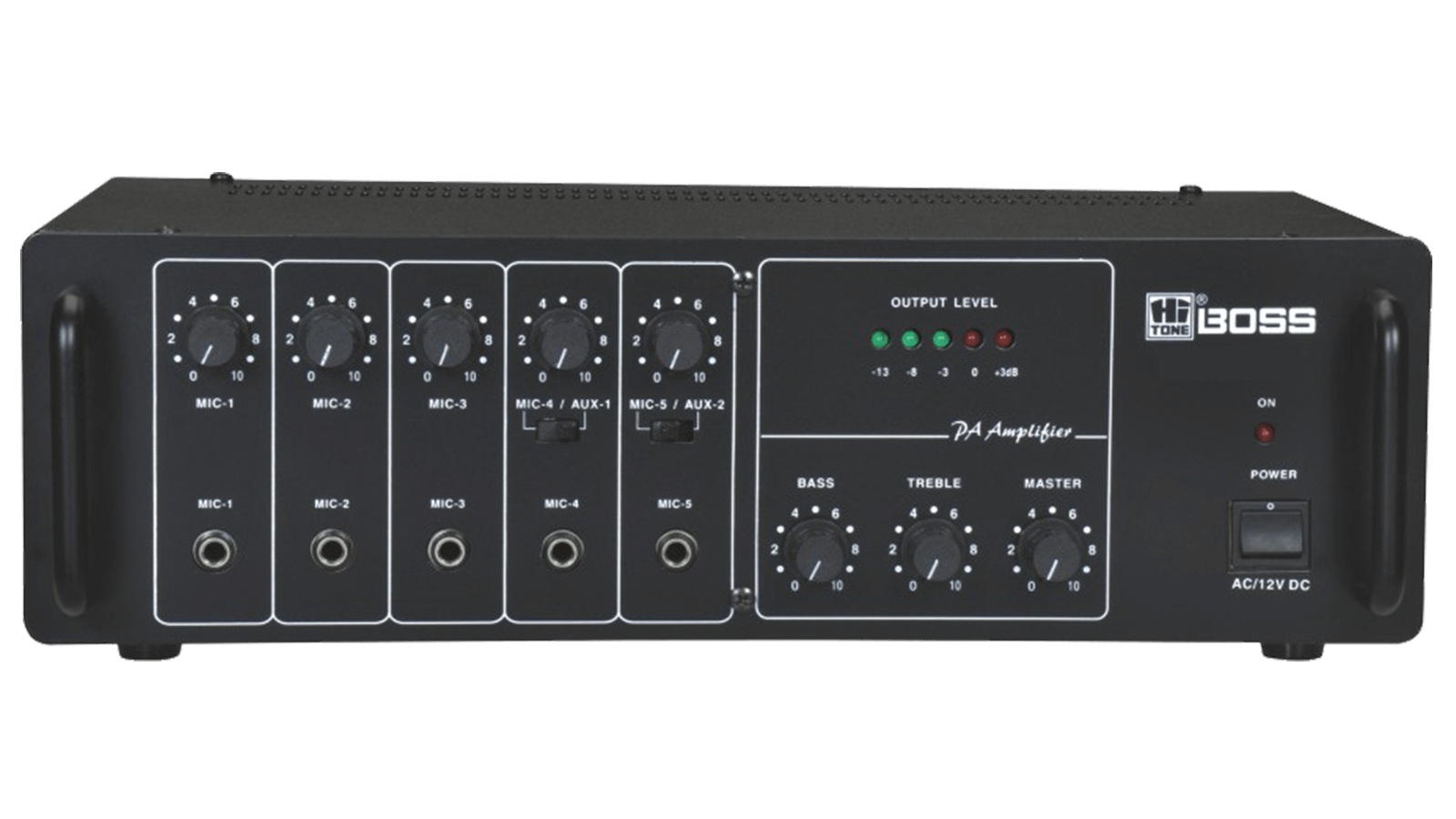

MEDIUM POWER PA Mixer AMPLIFIERS
AC & 12V DC Operation
|
Power Output |
160W Max., 120W RMS at 10% THD, 105W RMS at 5% THD, 95W RMS at 2% THD |
|
Output Regulation |
≤ 2 dB, no load to full load at 1kHz |
|
Input Channels |
5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470 kΩ |
|
Frequency Response |
50-15,000Hz ±3dB |
|
Signal to Noise Ratio |
60dB |
|
Tone Controls |
Bass: -10dB at 100Hz, Treble: -10dB at 10kHz |
|
Outputs |
Preamp 200mV/600Ω, Line 1V/1kΩ |
|
Speaker Outputs |
4Ω, 8Ω, 16Ω, 70V & 100V |
|
Power Supply |
AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
|
Power Consumption |
AC: 250VA DC: 5.5A |
|
Dimensions |
W420 × H135 × D295 mm |
|
Weight |
11.3kg |
